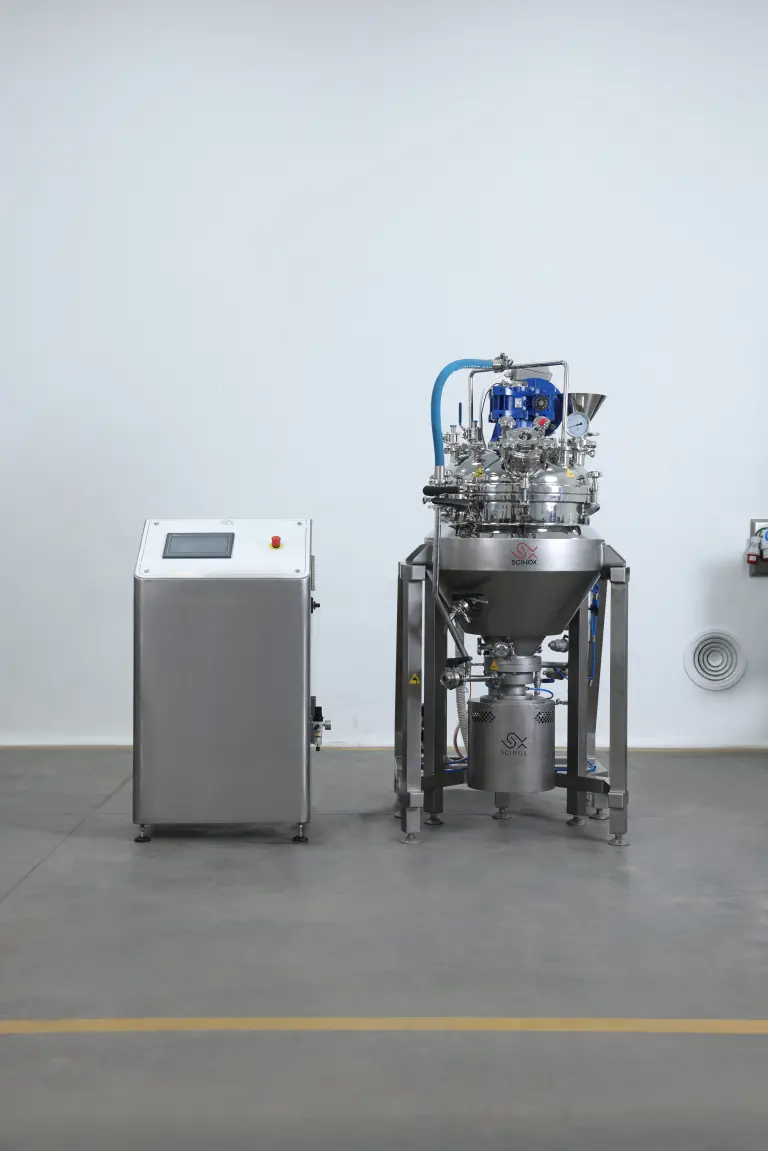

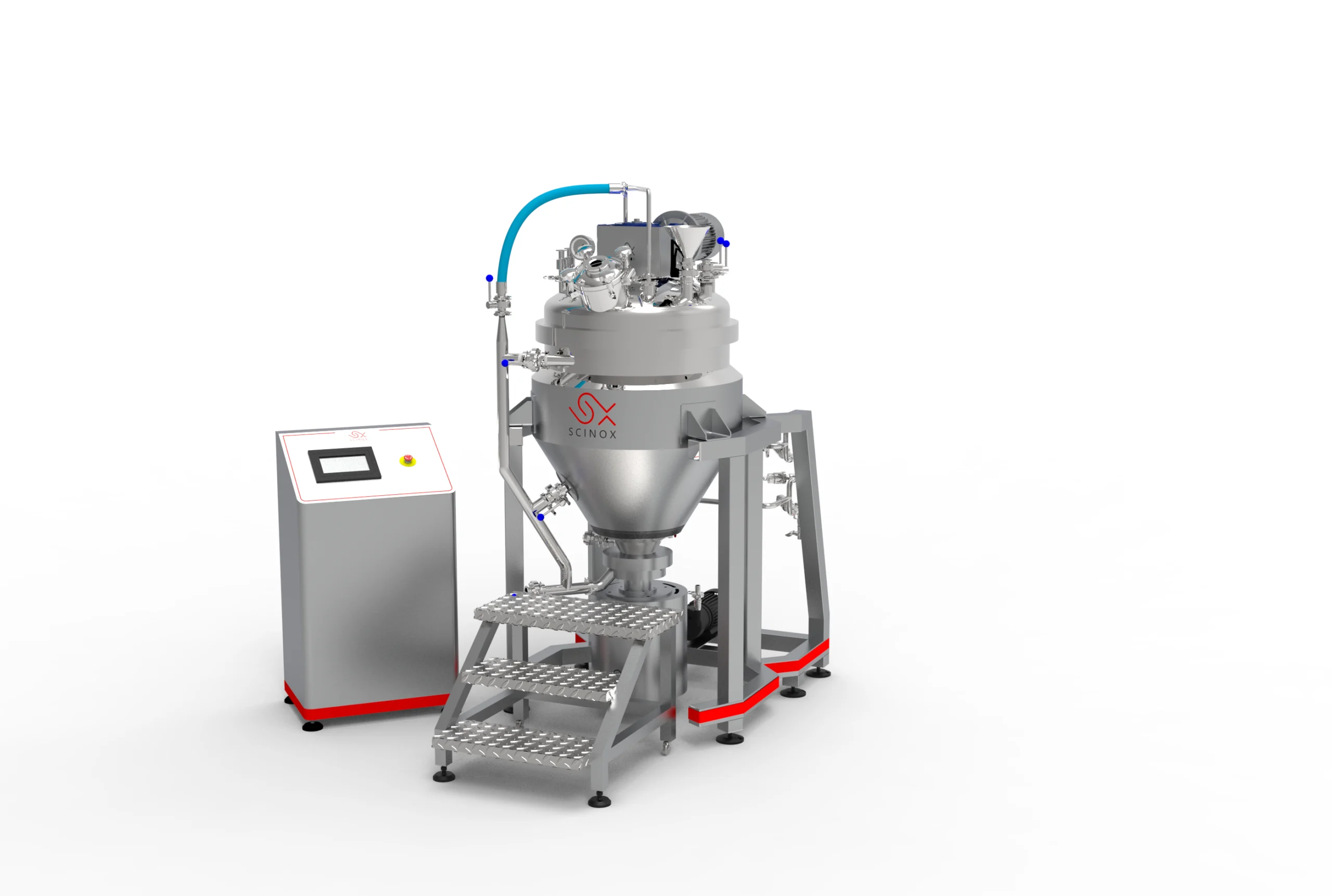

SE Reactor’s main parts:

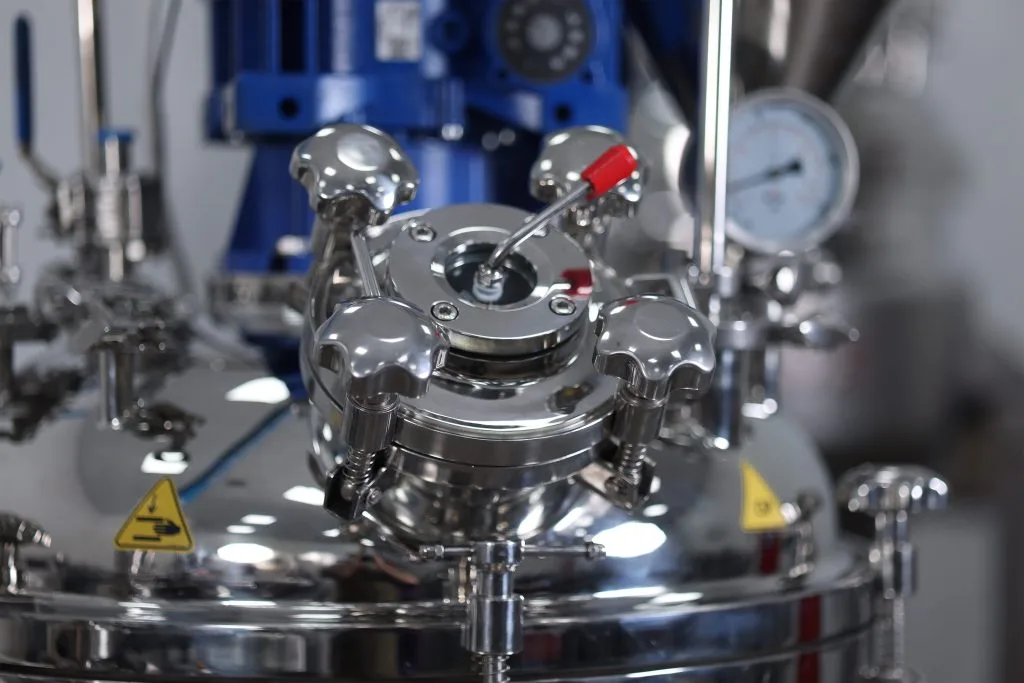

1. Top cover equipped with:

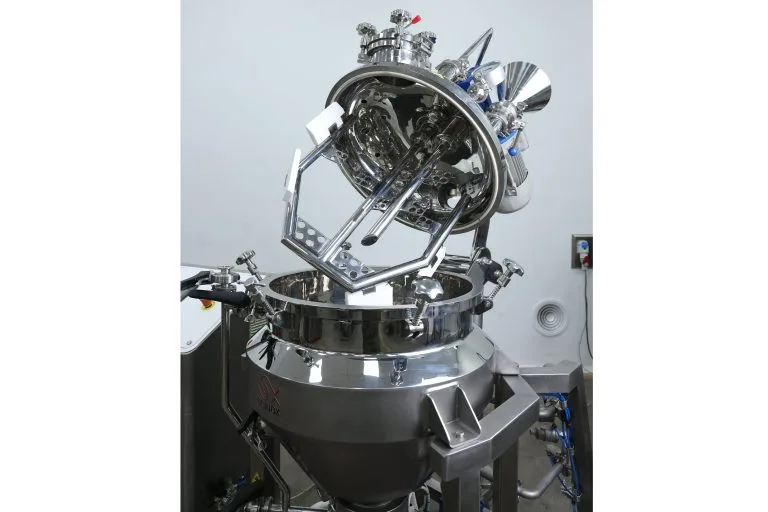

- Anchor mixing mechanism equipped with skimmers made of Teflon
Driven by motor and speed reducer and equipped with housing bearing with mechanical seal, the motor block and speed reducer are encased in stainless steel cover according to cGMP requirements. - Crystallization of illumination & vision.
- Orifice equipped with a manual butterfly valve with funnel.
- Slot equipped with a mechanical pressure gauge
- An opening connected to the vacuum system
- Slot equipped with 2 spare clamps
2. The mixing chamber is equipped with:
- Slot equipped with:
• Heating medium inlet (steam)
• Coolant outlet (cold water) - Opening equipped with safety valve and pressure gauge for Double Jacket.

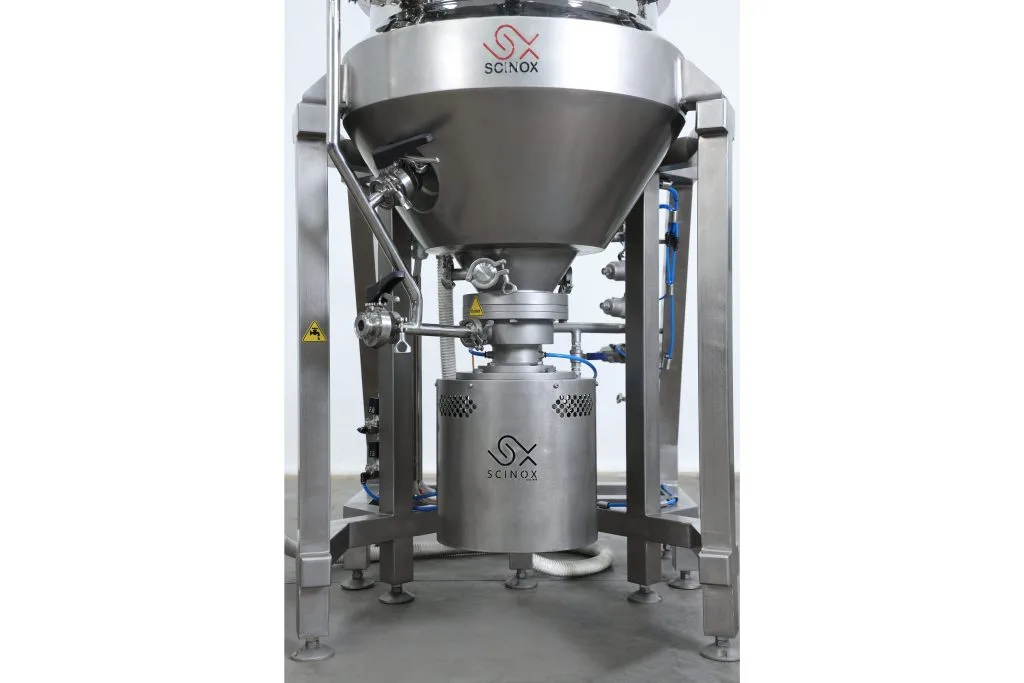

3. The bottom conical mixer is equipped with:
- A chamber installed at the bottom of the mixer is equipped with a BH-5 homogenizer according to Silverson’s design to homogenize and soften the product. It is connected to a motor and equipped with a mechanical seal to tighten the pressure. The chamber is equipped with a network of pipes through which the product is circulated within the mixer or discharged by controlling a manual butterfly valve installed within the pipe circuit.
- Temperature sensor

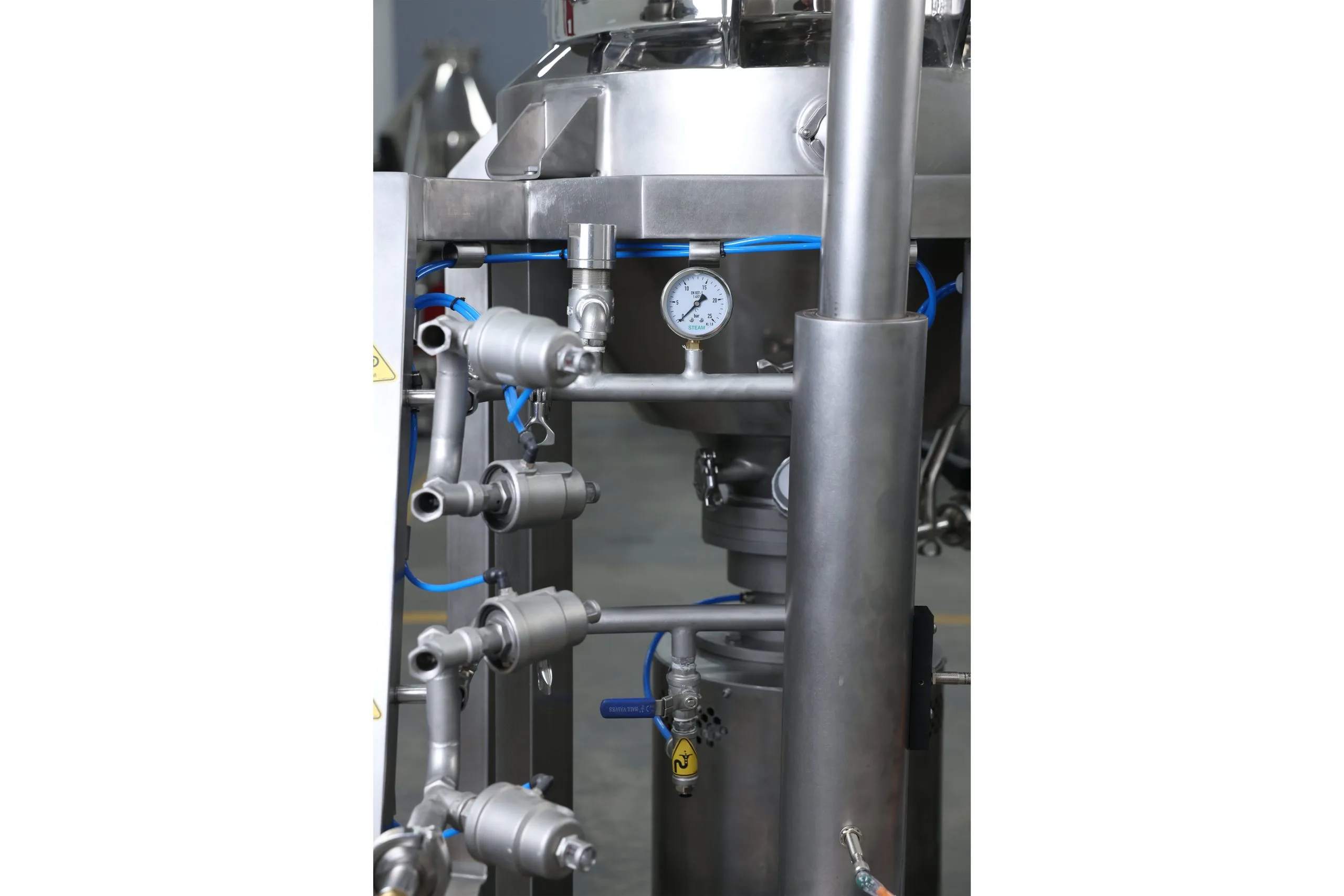

- Slot equipped with:
• Heating medium outlet (steam condenser)
• Coolant inlet (cold water) - The opening is equipped with a manual butterfly valve to enter the external phase through the vacuum system & one for discharging the product.
