Preparation unit – cGMP

Preparation unit – cGMP

  • It is used in the preparation e of several types of low and high viscosity products (simple syrups & suspensions etc..) Through mixing mechanisms that achieve high productivity and high efficiency.
  • Vertical cylindrical shape, spiral double jacket (heating/cooling), Insulated by rock wool.
  • Product contact parts made of SS (316 L) and non-contact parts made of SS ( 304 ).
  • all points welded by TIG & ORBITAL polished and treated
  • Interior surface of Tank is a mirror finishing and exterior surface is a Matt finishing.
Categories: ,

Description

Preparation unit’s main parts:

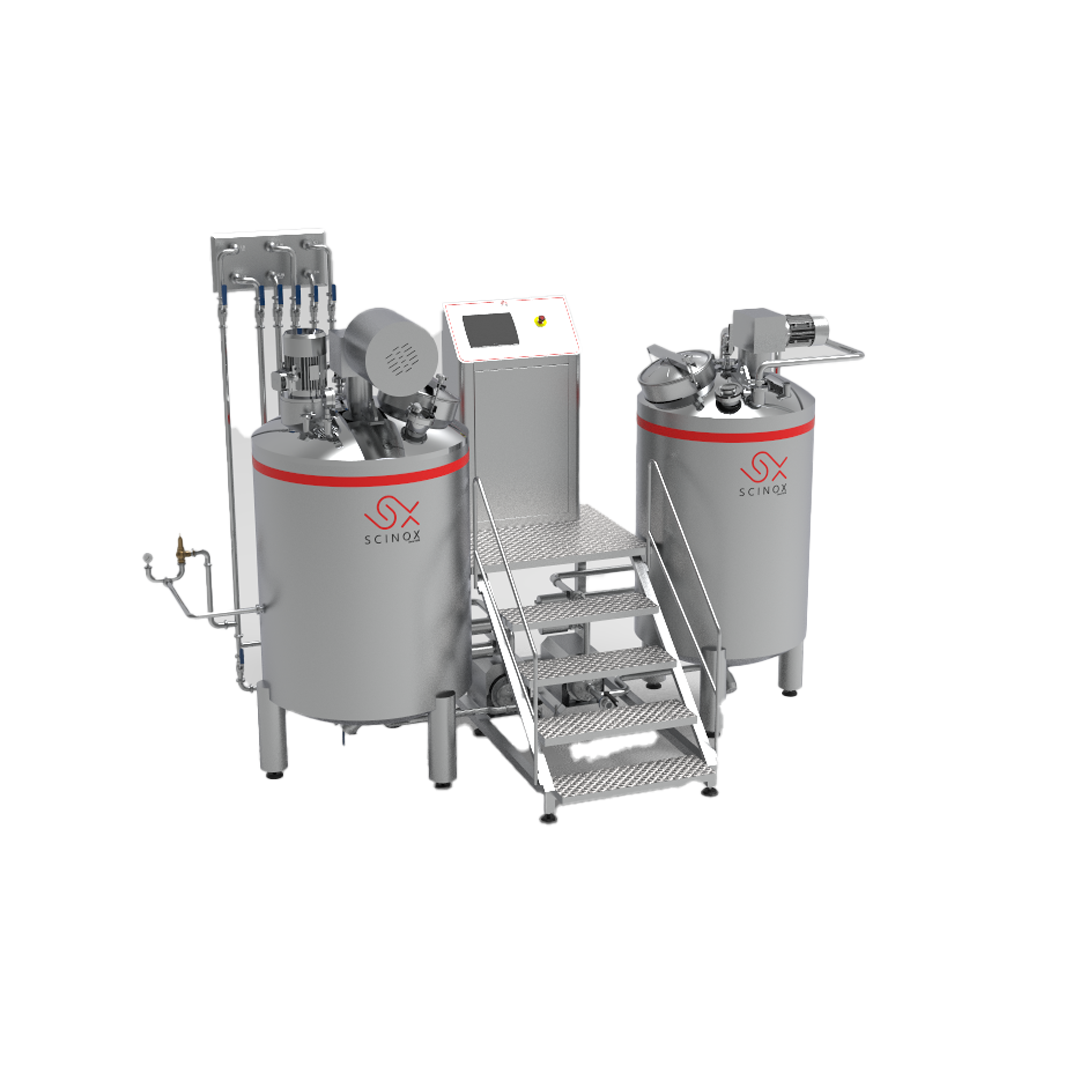

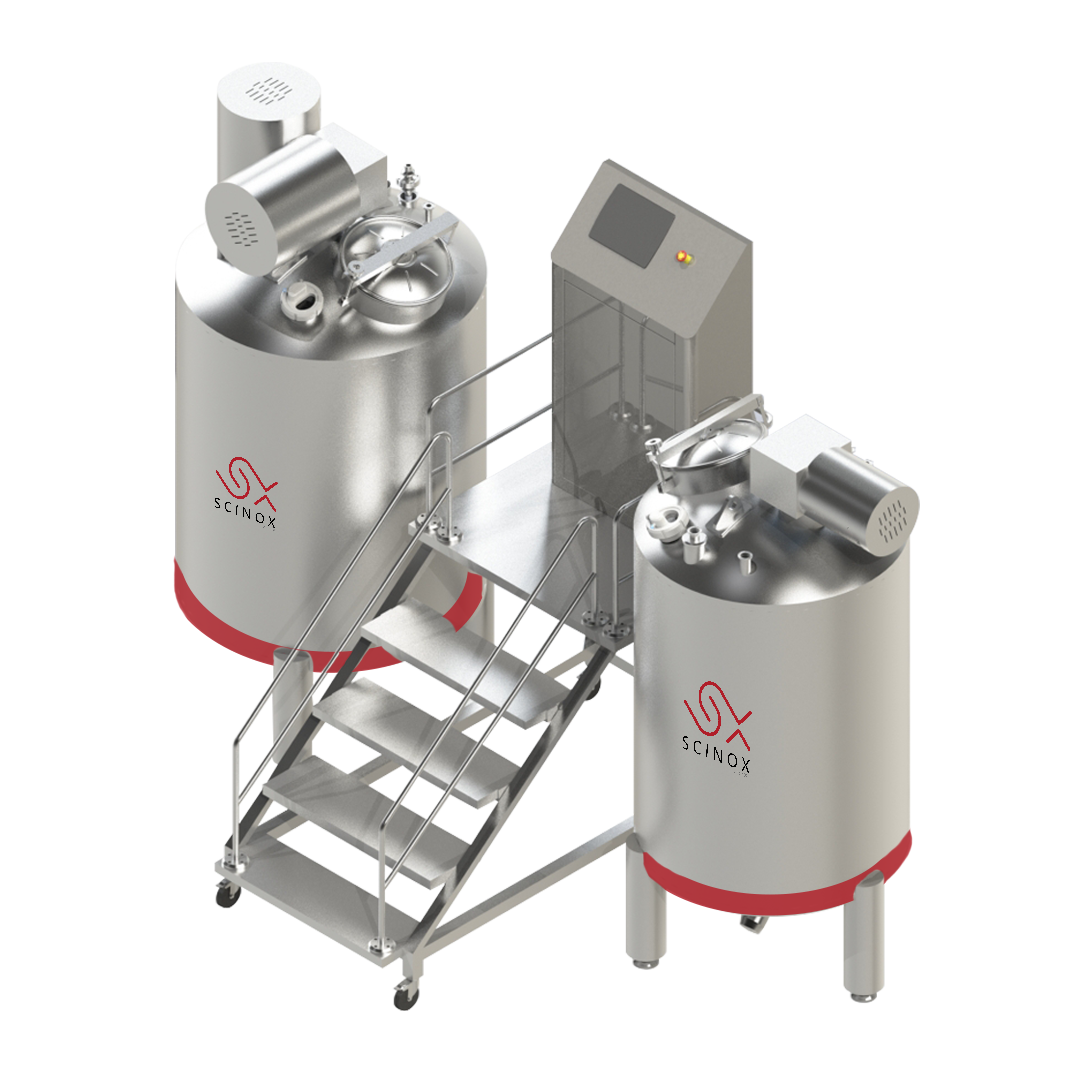

  1. Main preparation tank -Triple jacket – cGMP.
  2. Storage tank-Single layer -cGMP.
  3. Supervision platform & service panel for preparation unit.
  4. Piping system with orbital welding (SS3016L).
  5. PLC & HMI main control panel.

Technical Data

  • Triple Layer Tank is featured by high efficiency, ease of use and low maintenance.
  • Triple Layer Tank is designed and manufactured in accordance with international quality systems.
  • Model T-50 T-100 T-250 T-500 T-1000 T-2000 T-3000 T-5000 T-10000
    volume/L 50 100 250 500 850 1800 2800 4600 10000
    Capacity /L 75 130 350 650 1200 2200 3100 5500 12000
  • Triple Layer Tank can be designed to meet exact customer requirements.

Mixing mechanisms

FAN mixing mechanism.
Homogenizer mixing mechanism.
ANCHOR mixing mechanism.
HIGH SHEAR mixing mechanism.
BMA magnetic mixing mechanism.
BH bottom mixing mechanism.

Additions

In Line Mixer

Vacuum system

Level sensor system

Weight cell system

Clean in place system (CIP)

Sterilization in place system (SIP)

Supervision platform
