Double cone blender – cGMP

Double cone blender is part of our wide range of powder mixers for mixing & homogenizing dry powder .
It is considered one of the main equipment of Pharmaceutical, Cosmetics, Food & Chemical industries such as ( human & veterinary drugs , food powders , Pesticides ……..etc.).
Perfect homogeneity, less time
Add weight cells as an option.
all points welded by TIG & ORBITAL polished and treated
Product contact parts made of SS (316 L) and non-contact parts made of SS ( 304 ).
Interior surface of blender is a mirror finishing and exterior surface is a mirror finishing.
The blender mounted on stainless steel stand fitted with height – adjustable bases.

Description

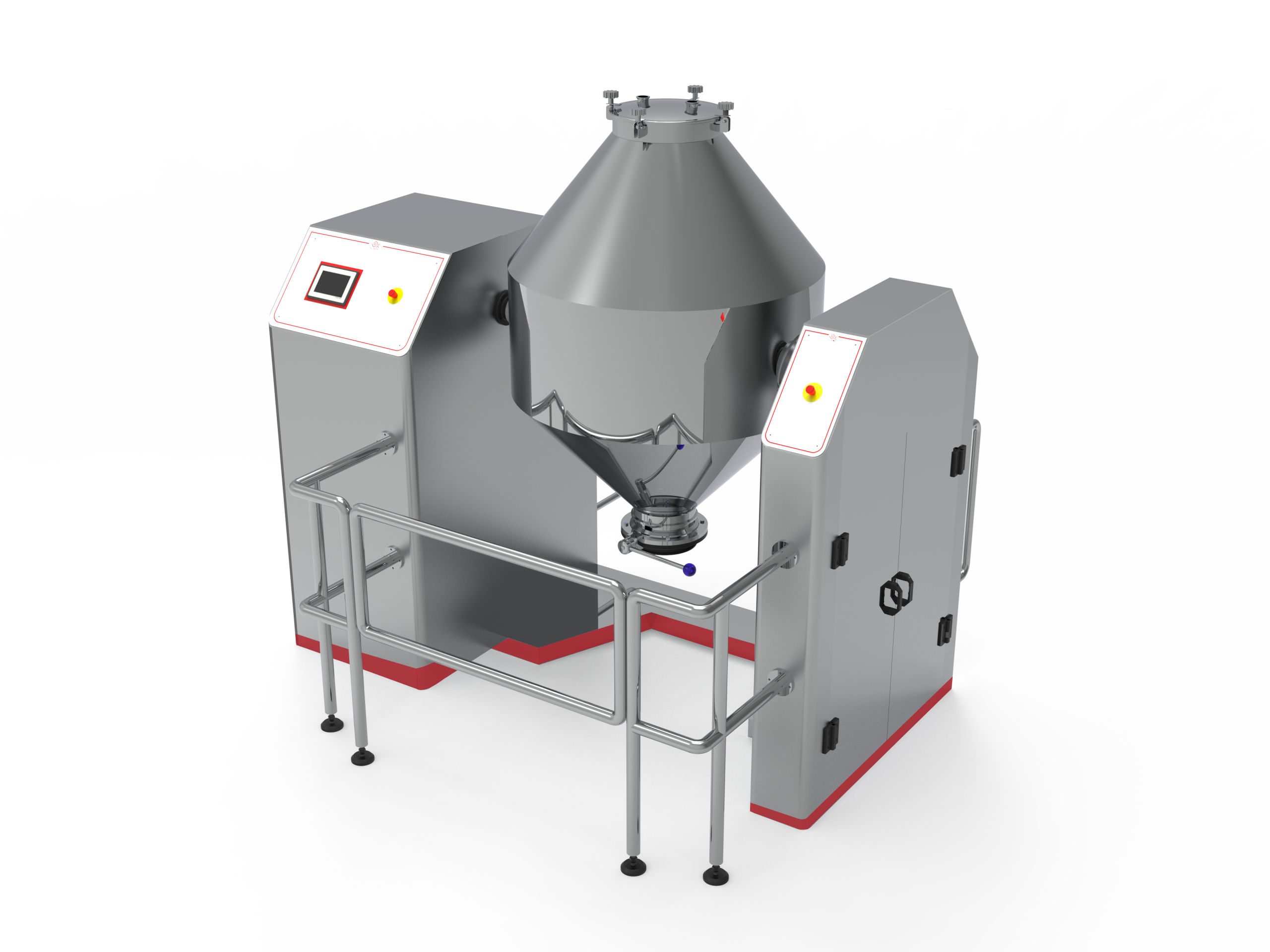

The Double cone blender consists of :

Vertical cylindrical chamber with two cones fitted with internal paddles for mixing ,the chamber rotates on horizontal axis.
the chamber is equipped with a supervision manhole cover .
Discharge port Equipped with a manual operated butterfly valve.
Sensor systems to control both startup & stop operations.
Sensor systems to control of blender stopping in desired place.
Guard rail with safety sensor to prevent approaching during work of blender.
PLC & HMI Control panel to control all operation functions of Double cone -blender.

The Double cone blender featured by high efficiency, ease of use and low maintenance.
The blender is designed and manufactured in accordance with international quality systems

Model D 50-60 D 80-100 D 120-150 D 350-500

Capacity / L 50-60 80-100 120-150 350-500

The production capacity varies depending on the type and density of the product.
The blender can be designed to meet exact customer requirements.
Documentation and protocols ( DQ–IQ–OQ–FAT–SAT).
After-sales services include maintenance operations and constant availability of spare parts.
