Description
Buffering Unit ’s main parts:
-
Tank.
- Tank ‘s head is flat.
- Tank’s body is cylindrical.
- Tank’s bottom is conical.
-

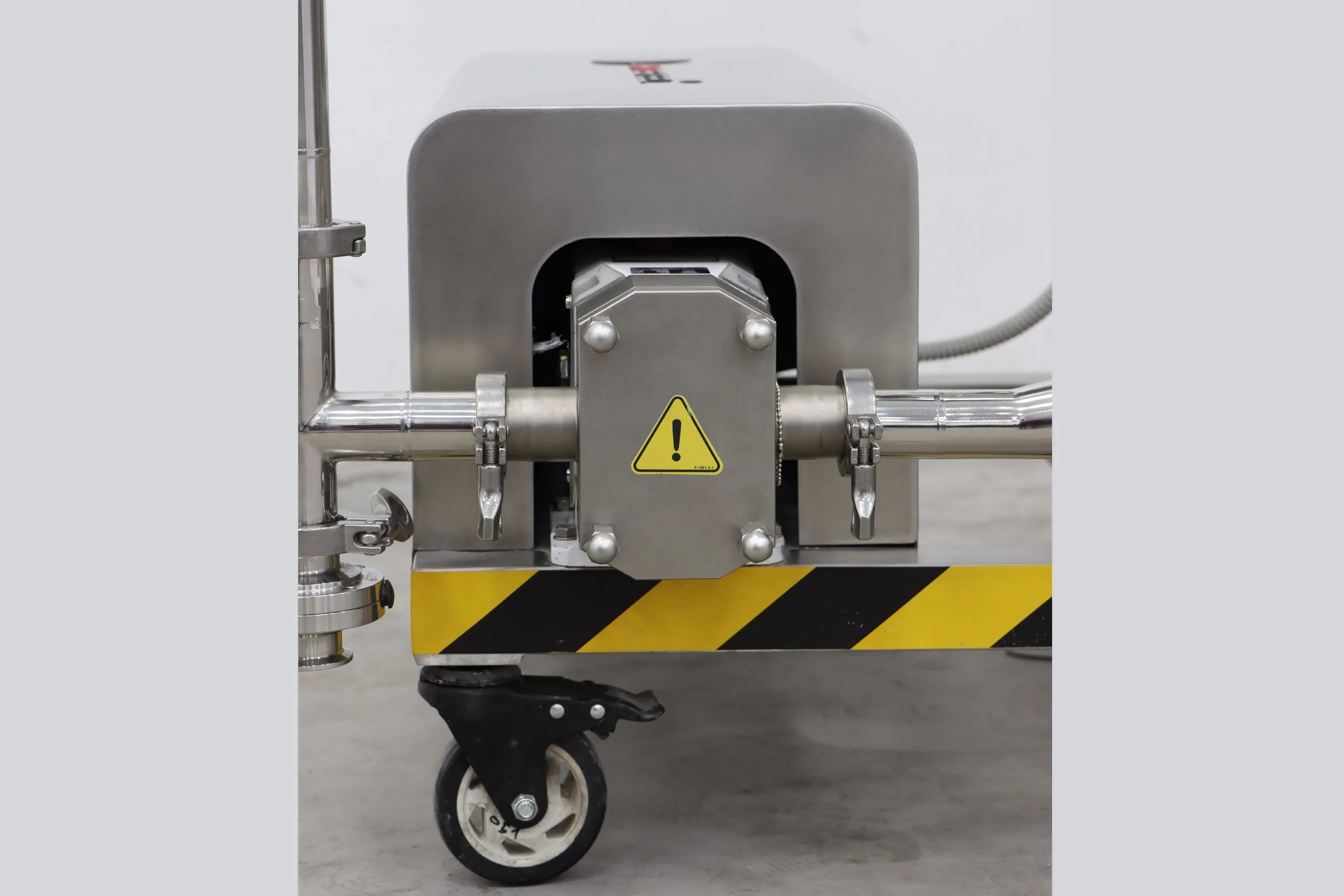

Transferring and Recycling Pump.
-
Stainless Steel trolley.

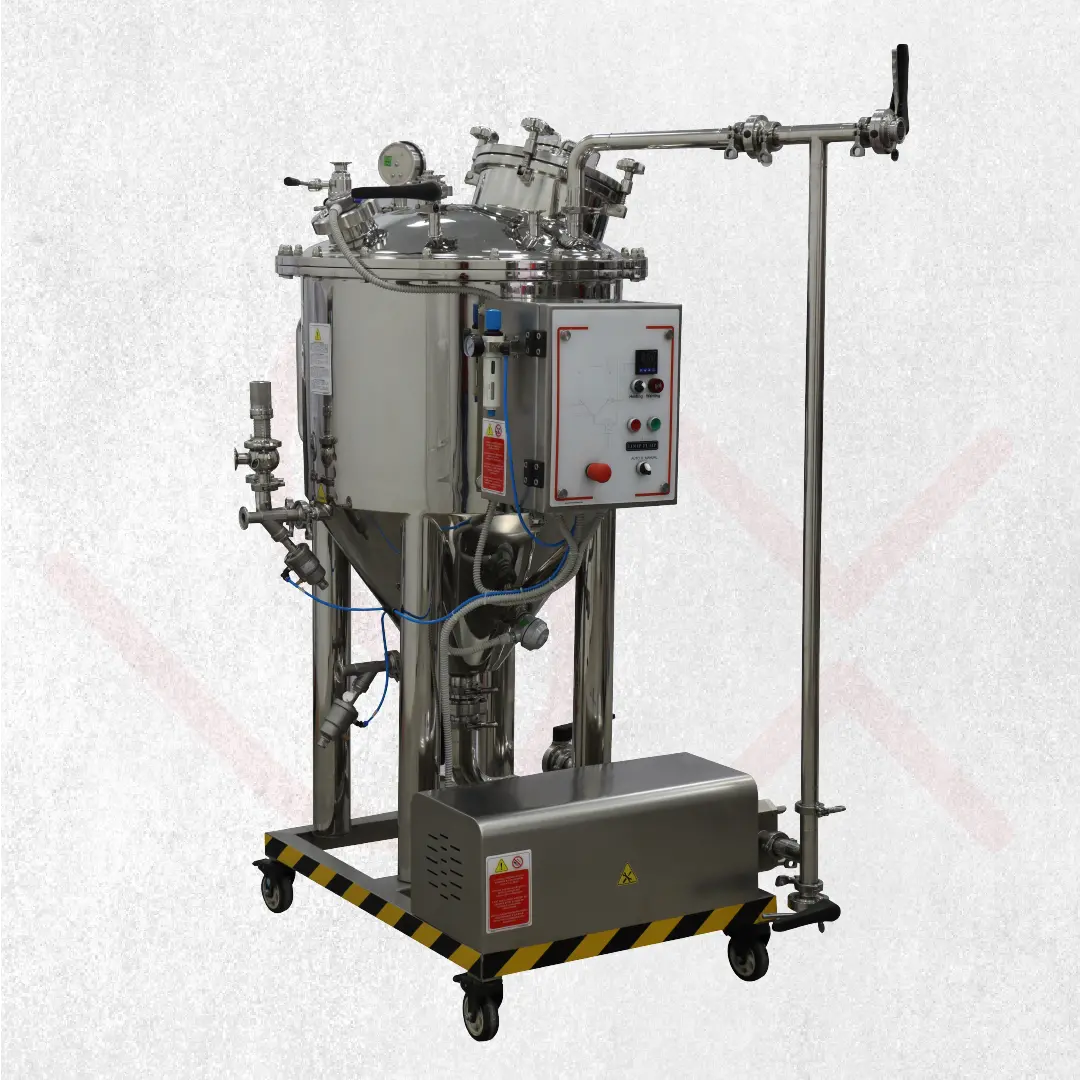

Buffering Unit – cGMP
- Buffering Unit is considered one of the essential equipment in the pharmaceutical (cosmetic-Human-Vet) ,food and chemical industries .
- It is used to reserve products after the preparation stage in the Pro mixer and before the filling stage, which ensures Continuous production during the preparation stage.
- Vertical cylindrical shape, single layer with a conical bottom.
- Product contact parts made of SS (316 L) and non-contact parts made of SS ( 304 ).
- Interior surface of the Mixer is a mirror finishing ( 0.5 ≤µm ) and exterior surface is a Matt finishing ( 0.8 ≤µm ).
- All points welded by TIG & ORBITAL polished and treated.
Technical Data
- Ointments and Creams Buffering Unit is characterized by an integrated design in accordance with cGMP requirements.
- Ointments and Creams Buffering Unit is featured by high efficiency, ease of use and low maintenance.
-
Model 200 500 volume/L 200 500 Capacity /L 350 650 - Ointments and Creams Buffering Unit can be designed to meet exact customer requirements.
