Description

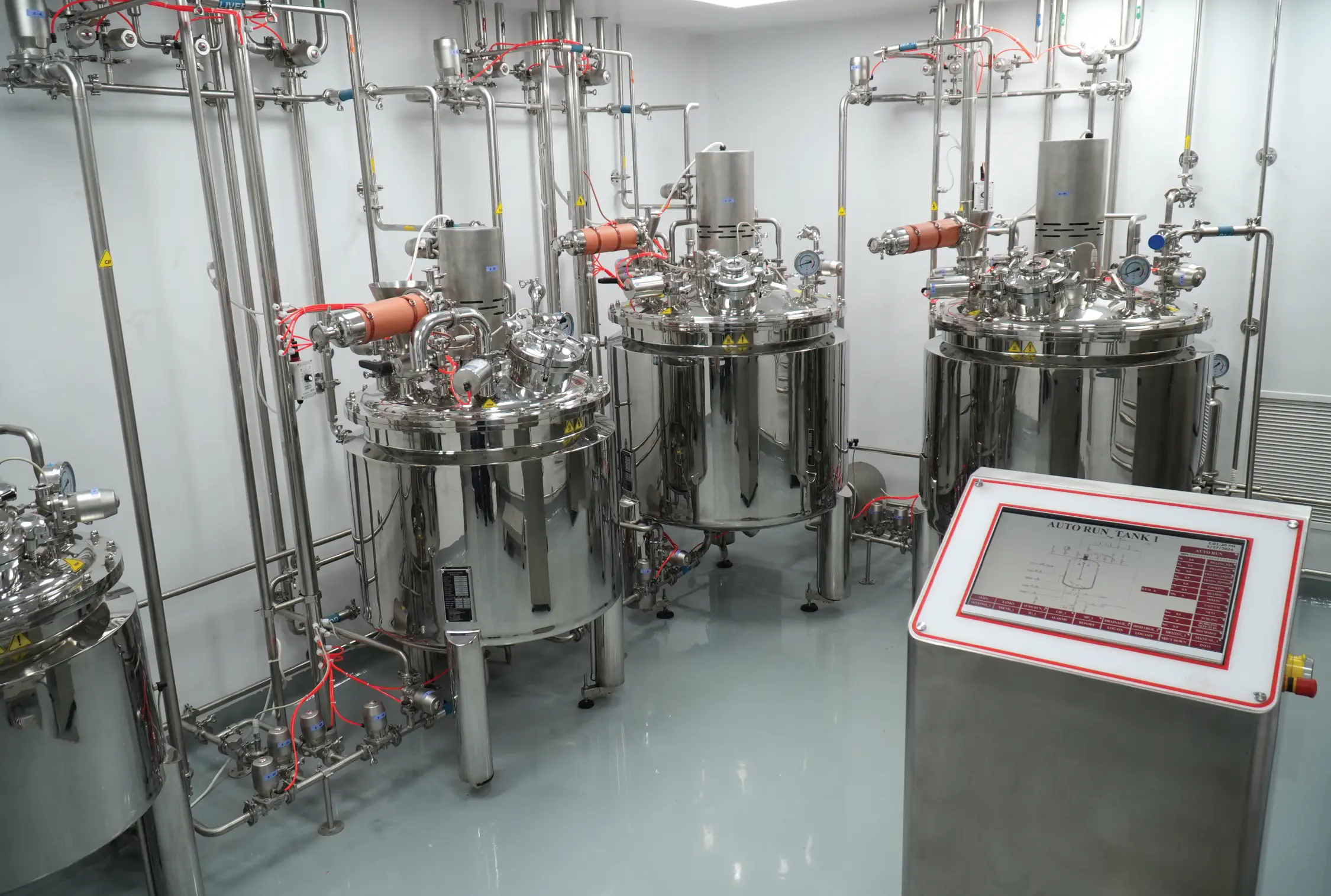

Preparation unit’s main parts:
- pre- preparation aseptic tank.
- Preparation aseptic tank.
- Storage aseptic tank.
- Helper aseptic tank.
- In line mixer I-MSC.
- SCADA system control .
- Piping system with orbital welding.
Aseptic Preparation unit – cGMP
- It is used in the preparation e of several types of low and high viscosity products (simple syrups & suspensions etc..) Through mixing mechanisms that achieve high productivity and high efficiency.
- Vertical cylindrical shape, spiral double jacket (heating/cooling), Insulated by rock wool.
- Product contact parts made of SS (316 L) and non-contact parts made of SS ( 304 ).
- all points welded by TIG & ORBITAL polished and treated
- Interior surface of Tank is a mirror finishing and exterior surface is a Matt finishing.
Technical Data
- Triple Layer Tank is featured by high efficiency, ease of use and low maintenance.
- Triple Layer Tank is designed and manufactured in accordance with international quality systems.
-
Model T-50 T-100 T-250 T-500 T-1000 T-2000 T-3000 T-5000 T-10000 volume/L 50 100 250 500 850 1800 2800 4600 10000 Capacity /L 75 130 350 650 1200 2200 3100 5500 12000 - Triple Layer Tank can be designed to meet exact customer requirements.
Mixing mechanisms
FAN mixing mechanism.
Homogenizer mixing mechanism.
ANCHOR mixing mechanism.
HIGH SHEAR mixing mechanism.
BMA magnetic mixing mechanism.
BH bottom mixing mechanism.
Additions
In Line Mixer
Vacuum system
Level sensor system
Weight cell system
Clean in place system (CIP)
Sterilization in place system (SIP)
Supervision platform
